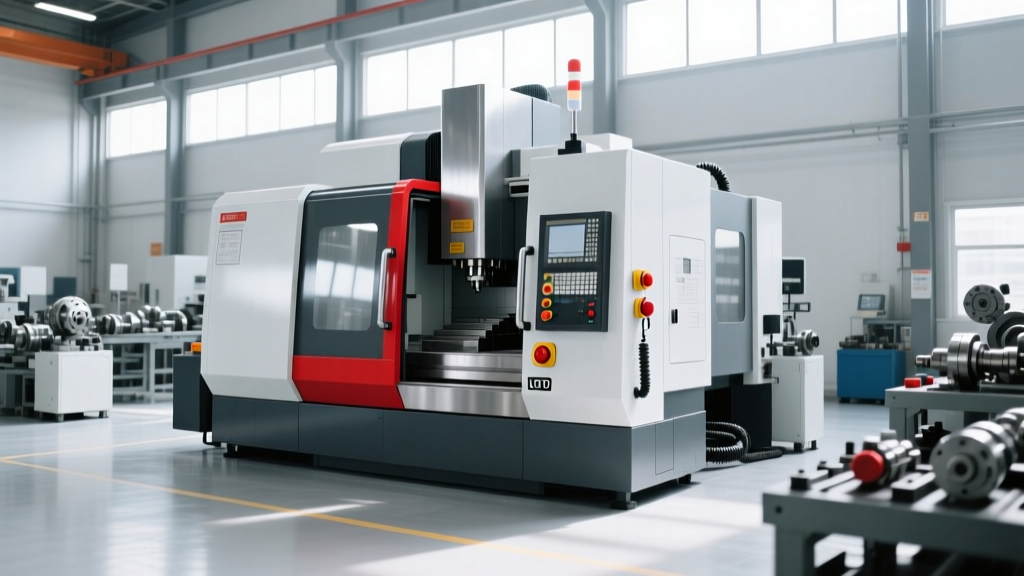

Machining Center CNC Safety: OSHA & ISO Compliance Guidelines

Operating a modern machining center CNC involves managing extreme kinetic energy, high-voltage electrical systems, and hazardous chemical aerosols. Compliance is not merely a bureaucratic hurdle; it is a precise engineering discipline governed by overlapping federal and international standards. With OSHA maximum penalties for willful safety violations exceeding $161,000 per instance, shop floor managers and manufacturing engineers must move beyond basic machine guarding and implement verifiable, data-backed safety architectures.

This guide dissects the exact material specifications, interlock logic, and hazardous energy control protocols required to bring 3-axis, 4-axis, and 5-axis vertical and horizontal machining centers into full regulatory alignment.

⚠️ CRITICAL COMPLIANCE WARNING: Relying solely on the OEM's standard safety package does not guarantee OSHA compliance once the machine is integrated into your facility's specific workflow. Under OSHA's 1910.212 General Requirements for All Machines, the employer bears the ultimate liability for point-of-operation guarding, regardless of the manufacturer's baseline configuration.

The Regulatory Triad: OSHA, ANSI, and ISO

Facility safety managers must synthesize requirements from three distinct frameworks. While OSHA provides the legal enforcement mechanism, ANSI and ISO provide the technical engineering specifications required to meet those laws.

Standard Framework	Specific Code / Document	Primary Focus for Machining Centers	Enforcement Level
OSHA	29 CFR 1910.212 & 1910.147	General machine guarding and Lockout/Tagout (LOTO) procedures.	Federal Law (Mandatory)
ANSI	ANSI B11.8 (Milling, Drilling, Boring)	Specific safeguarding methods, interlock categories, and chip management.	Industry Consensus (Cited by OSHA)
ISO	ISO 16090-1 (Machining Centres)	Global safety requirements for automated tool changers (ATC) and pallet systems.	International Standard (Best Practice)

Optical and Physical Guarding Specifications

The transparent viewing windows on a machining center CNC enclosure are subjected to severe thermal and chemical stress. A shattered window during a high-speed tool failure can result in catastrophic operator injury. Selecting the correct polymer is a critical compliance decision.

Material Selection: PC vs. PETG

Standard acrylic (PMMA) is strictly prohibited for CNC enclosures due to its brittle failure mode. Facilities typically choose between Polycarbonate (PC) and Polyethylene Terephthalate Glycol (PETG).

• Polycarbonate (Lexan/Makrolon): Offers the highest impact resistance. A 12mm (1/2-inch) thickness is required to stop a 50-gram projectile (e.g., a broken carbide endmill holder) traveling at 100 m/s. However, PC is highly susceptible to chemical degradation from synthetic and semi-synthetic metalworking fluids, which cause micro-crazing and eventual structural failure.
• PETG: Provides superior chemical resistance to alkaline coolants and chlorinated tapping oils. While its absolute impact strength is roughly 20% lower than PC, its resistance to environmental stress cracking makes it the superior choice for heavy-duty production environments utilizing aggressive coolants.

🛑 MAINTENANCE DIRECTIVE: Never allow operators to clean polycarbonate CNC windows with ammonia-based glass cleaners (e.g., Windex). Ammonia instantly attacks the polymer chains, causing immediate crazing. Use only neutral pH (7.0) aqueous cleaners. Furthermore, mandate a complete window replacement cycle every 36 to 48 months, regardless of visible damage, as UV exposure from shop lighting and coolant saturation silently degrades impact ratings.

Interlock Logic and Spindle Run-Down Timers

Opening the primary operator door while the spindle is rotating is a primary cause of amputation injuries. Modern machining center CNC systems must utilize Category 1 or Category 0 stop logic tied to guard-locking interlocks.

Guard Locking vs. Position Monitoring

For spindles operating above 8,000 RPM, run-down times can exceed 20 seconds. A simple position-monitoring switch (which cuts power when the door unlatches) is non-compliant if the operator can physically open the door before the spindle halts. You must install solenoid guard locks (e.g., Schmersal AZM400 or Pilz PSENslock) that physically prevent the door handle from actuating until the spindle speed sensor confirms 0 RPM.

"Upgrading legacy VMCs from magnetic reed switches to RFID-coded interlocks like the Pilz PSENcode eliminates the risk of operators defeating the safety circuit with a simple shop-floor magnet, a common OSHA citation during surprise audits."

5-Axis Kinematics and LOTO Protocols

Lockout/Tagout (LOTO) on a 3-axis VMC is straightforward. However, 5-axis machining centers introduce severe gravity-drop hazards via their trunnion tables (A/C axes) and swivel heads (B/C axes). Under OSHA 1910.147 (The Control of Hazardous Energy), stored mechanical and gravitational energy must be neutralized.

Step-by-Step 5-Axis LOTO Procedure

1. Notify & Stop: Alert all affected personnel and initiate a normal machine stop cycle.
2. Isolate Electrical Energy: Rotate the main disconnect switch to OFF and apply a personal padlock and tag.
3. Bleed Pneumatic/Hydraulic Pressure: Open the manual dump valve on the machine's pneumatic panel to release stored air pressure (typically 60-90 PSI) used for tool clamping and way covers.
4. Block Gravitational Energy (CRITICAL): Insert the OEM-specified mechanical safety prop block beneath the 5-axis swivel head or trunnion table. If the machine lacks a proprietary prop, use a rated steel stand to physically support the casting weight (which can exceed 1,500 lbs on large HMCs).
5. Verify Zero Energy: Attempt to start the machine via the HMI. Attempt to manually unclamp a tool holder to verify pneumatic bleed-down.

Metalworking Fluid (MWF) Extraction and Air Quality

High-pressure coolant delivery systems (70 to 1,000+ bar) atomize metalworking fluids into respirable aerosols. The CDC's National Institute for Occupational Safety and Health (NIOSH) strictly monitors these exposures. According to NIOSH guidelines on Metalworking Fluids, prolonged inhalation of MWF mist is linked to occupational asthma, hypersensitivity pneumonitis, and respiratory tract irritation.

Sizing Your Mist Collector

Leaving the enclosure door cracked open during a cycle to 'let the smoke clear' is an immediate OSHA violation. Every enclosed machining center CNC requires a dedicated or centralized mist collection system. To calculate the required Cubic Feet per Minute (CFM):

• Base Enclosure Volume: Calculate the internal cubic footage of the machine enclosure.
• Air Change Rate: Target a minimum of 4 to 6 complete air changes per minute inside the enclosure to maintain negative pressure.
• Example Calculation: A standard VMC with an internal volume of 150 cubic feet requires a minimum of 900 CFM (150 x 6). Always round up to account for filter loading; a 1,200 CFM centrifugal or HEPA-filtered unit is the practical minimum for standard VMCs, while large HMCs require 2,000+ CFM.

Compliance Audit Matrix: Identifying Hidden Gaps

Use this diagnostic matrix during your quarterly internal safety audits to identify non-obvious compliance failures before an external inspection occurs.

Audit Symptom / Observation	Probable Root Cause	Required Corrective Action
Operator complains of 'fog' lingering after cycle completion.	Mist collector filters saturated, or enclosure door seals degraded.	Replace primary HEPA media; inspect and replace extruded rubber way-cover and door seals.
Door interlock can be bypassed by pulling hard on the handle.	Mechanical wear on the solenoid locking tongue; misalignment of the actuator.	Install RFID non-contact safety switches (e.g., Pilz PSENcode) which cannot be mechanically forced or defeated.
LOTO procedure does not mention the A-axis trunnion.	Outdated SOP copied from a legacy 3-axis machine manual.	Rewrite LOTO SOP to include mechanical blocking of all gravity-loaded axes; train and document sign-offs.
Polycarbonate windows show white, cloudy streaking.	Chemical attack from alkaline coolant or ammonia-based cleaning agents.	Replace windows with coolant-resistant PETG; ban ammonia cleaners; switch to pH-neutral wash.

Achieving total safety compliance on the shop floor requires treating your machining center CNC not just as a production asset, but as a contained industrial hazard. By enforcing strict material standards for guarding, upgrading to tamper-proof RFID interlocks, and rigorously managing gravitational and respiratory hazards, facilities can protect their workforce while insulating the business from severe regulatory penalties.
