Cost Analysis: Medtronic Medical Equipment Manufacturing Automation

The Capital Reality of Automated Medical Device Assembly

Integrating automated production lines for complex medical devices requires navigating a unique intersection of precision engineering, traceability, and stringent regulatory compliance. When benchmarking against industry leaders, understanding the cost structure of Medtronic medical equipment manufacturing provides a critical blueprint for capital allocation. Unlike high-volume consumer electronics, medical device assembly often involves high-mix, low-to-medium volume production runs where the cost of a single defective unit extends far beyond scrap value into potential patient harm and regulatory action.

For manufacturing engineers and plant managers planning 2026 capital expenditures, the initial equipment sticker price represents only a fraction of the total integration cost. Budgeting for automated production line equipment integration in the medical sector requires factoring in cleanroom compatibility, specialized material handling, and exhaustive validation protocols. This analysis breaks down the true CapEx and OpEx of deploying automated assembly systems in highly regulated environments.

CapEx Breakdown: Core Automated Integration Modules

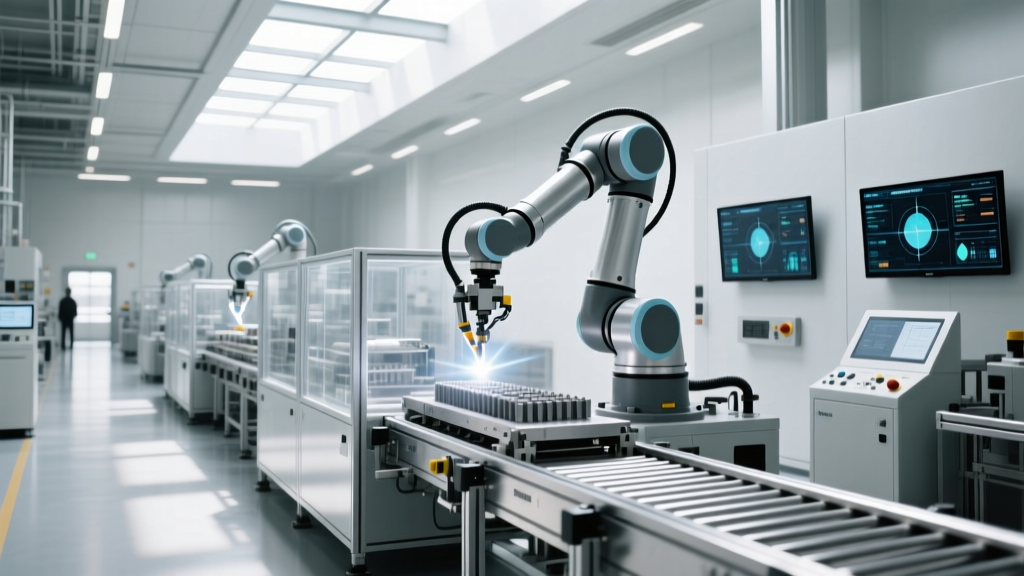

A typical automated assembly line for electromechanical medical devices—such as insulin pumps, surgical staplers, or diagnostic monitors—relies on a synchronized network of robotics, vision systems, and precision joining equipment. The table below outlines current market pricing for core modules, distinguishing between the base hardware cost and the fully integrated, validated cost.

Module Type	Example Equipment	Base Hardware Cost	Integrated & Validated Cost
6-Axis Cobot Assembly	FANUC CRX-10iA/L	$32,000	$75,000 - $90,000
Precision Laser Welding	IPG Photonics Medical Series	$85,000	$140,000 - $180,000
Machine Vision Inspection	Cognex In-Sight 2800	$12,500	$28,000 - $35,000
Smart Conveyor Routing	Bosch Rexroth TS5 (Cleanroom)	$45,000	$95,000 - $120,000
Automated Dispensing	Nordson ASYMTEK Spectrum S-930	$65,000	$110,000 - $135,000

The "Integrated & Validated" column includes custom end-of-arm tooling (EOAT), PLC programming (typically Allen-Bradley ControlLogix or Siemens S7-1500), OPC UA network configuration, and the physical installation within a controlled environment. For a standard 12-station automated line, total CapEx routinely scales from $2.5 million to $6 million, depending on the complexity of the fluidics or electromechanical sub-assemblies involved.

The Validation Tax: IQ/OQ/PQ Protocols

In Medtronic medical equipment manufacturing, you cannot simply plug in a robot and begin production. Under FDA 21 CFR Part 820 regulations, specifically Section 820.70 (Production and Process Controls), any automated process must undergo rigorous validation to ensure it consistently meets predetermined specifications.

Warning: The Hidden Cost of Validation Engineering
Many capital budgets underestimate the cost of Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). For a single automated laser welding station, expect to spend $40,000 to $65,000 purely on validation engineering hours, documentation, and destructive testing of sample batches. Across a multi-station line, the validation tax can consume 15% to 22% of the total project CapEx.

Validation requires producing hundreds of test units that are subsequently destroyed or sequestered to prove process capability (Cpk > 1.33). Budget planners must account for the cost of the raw materials used in these validation runs, which are often high-value medical-grade polymers (like PEEK or Ultem) and titanium alloys.

Cleanroom Integration Premiums and OpEx

Medical devices that contact the bloodstream or are implanted require assembly in ISO Class 7 or ISO Class 8 cleanrooms. Automating these environments introduces severe operational expenditures (OpEx) and physical constraints that drive up integration costs.

Material and Airflow Constraints

• Outgassing Restrictions: Standard industrial lubricants, 3D-printed EOAT components, and certain cable jackets are prohibited due to particulate and volatile organic compound (VOC) outgassing. All automated components must utilize cleanroom-rated greases and stainless steel (316L) or hard-anodized aluminum constructions.
• HEPA Filtration Penalties: Automated equipment generates heat and particulates. Integrating a 15-foot automated assembly line requires upsizing the local HVAC and HEPA filter arrays to maintain positive pressure and the required air changes per hour (ACH). Expect to add $120,000 to $250,000 to the facility prep budget for localized cleanroom ceiling grid modifications and laminar flow hoods.
• Filter Replacement OpEx: Cleanroom pre-filters must be changed monthly, and HEPA filters annually or bi-annually. For a 5,000 sq. ft. automated assembly suite, annual filter maintenance and particle counting certification costs average $45,000 to $60,000.

ROI Calculation Framework for High-Mix Lines

Calculating the return on investment for medical automation requires looking beyond direct labor displacement. In 2026, with advanced manufacturing labor rates exceeding $35/hour and a persistent shortage of certified cleanroom technicians, the ROI model must incorporate yield preservation and compliance risk mitigation.

Use the following weighted framework to project payback periods for medical equipment integration:

1. Direct Labor Reduction: Calculate the fully burdened cost of operators replaced. (e.g., 4 operators per shift x 2 shifts x $75,000 burdened annual cost = $600,000/year).
2. Scrap and Rework Avoidance: Manual assembly of micro-fluidic cartridges typically yields a 3-5% scrap rate due to particulate contamination or misalignment. Automated vision-guided assembly reduces this to <0.5%. Assign a dollar value to the saved raw materials and the avoided labor of teardown/rework.
3. UDI Traceability Automation: Manual Unique Device Identification (UDI) logging is prone to errors that can trigger FDA Form 483 observations. Automated laser marking and vision verification eliminate serialization errors, reducing quality management system (QMS) audit prep time by an estimated 300 hours annually.
4. Payback Formula: Total Annual Savings / (Total CapEx + Year 1 Validation & OpEx). A well-engineered medical automation line should target a payback period of 2.8 to 3.5 years, factoring in the heavy upfront validation costs.

Strategic Vendor Selection: Turnkey vs. Modular Integration

When sourcing equipment for Medtronic medical equipment manufacturing scales, the decision between turnkey integrators and modular in-house integration heavily impacts both the budget and the timeline.

Turnkey Integrators (e.g., ATS Automation, Mikron)

Turnkey vendors deliver a fully validated, CE/UL-marked system with complete IQ/OQ documentation. While the upfront premium is 20% to 30% higher than buying standalone modules, the risk of integration failure is transferred to the vendor. This is the mandatory route for novel, high-risk devices where process parameters are still being finalized during the design transfer phase. For deeper insights into standardizing these complex systems, refer to the NIST Smart Manufacturing guidelines on interoperability and data exchange.

Modular In-House Integration

Purchasing standalone cobots, conveyors, and vision systems and integrating them via an internal controls engineering team reduces CapEx but drastically extends the validation timeline. Internal teams often struggle with the documentation rigor required for ISO 13485 Quality Management compliance. This approach is only financially viable for mature, high-volume products (like standard syringes or basic diagnostic cassettes) where the assembly process is already locked and internal engineers possess prior medical validation experience.

Final Budgeting Directives

Successful budget planning for automated medical device lines requires abandoning the "hardware-only" mindset. Allocate a minimum of 18% of your total CapEx budget specifically for validation engineering, cleanroom facility modifications, and raw material test batches. By front-loading these costs in the initial capital request, manufacturing leaders can prevent the mid-project budget freezes that frequently delay medical device launches and disrupt revenue forecasting.
