Brennan Equipment & Manufacturing Inc: Lean Workstation Specs

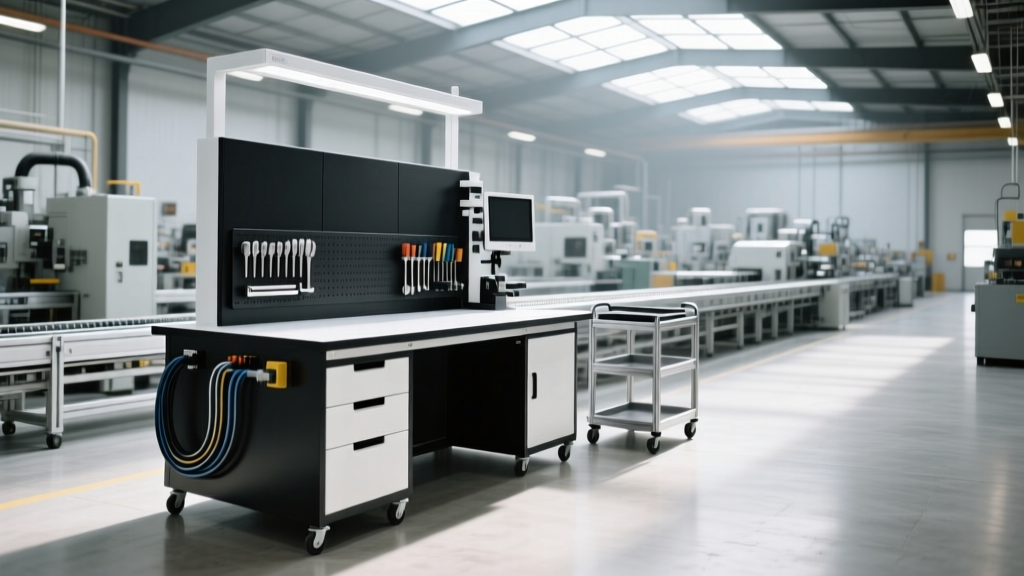

Lean manufacturing eliminates muda (waste) by optimizing physical workflows, minimizing motion, and enforcing continuous material flow. Specialized fabricators like Brennan Equipment & Manufacturing Inc approach workstation design not as static furniture production, but as the engineering of dynamic flow nodes. A true lean workstation must adapt to takt time variations, operator ergonomics, and shifting product mixes without requiring hot work, welding, or heavy machinery to reconfigure.

Understanding the technical specifications behind these modular systems reveals how modern production lines achieve high-mix, low-volume agility. This guide breaks down the mechanical design, material specs, and ergonomic integrations that define premium lean manufacturing equipment.

Core Technical Specifications: Modular vs. Traditional Workstations

Traditional industrial workbenches rely on welded steel frames and bolted laminated tops. While robust, they are fixed assets. Lean workstations utilize modular coated tubing and clamped joints, allowing for rapid teardown and reconfiguration. The table below contrasts the engineering baselines of both approaches.

Specification	Traditional Welded Workbench	Modular Lean Workstation
Frame Material	Mild Steel Square Tubing (Painted)	SPCC Steel Pipe with PE Coating
Outer Diameter (OD)	38mm - 50mm	28mm (Standardized)
Wall Thickness	2.0mm - 3.0mm	1.2mm - 2.0mm
Joinery Method	MIG/TIG Welding + Gussets	Die-cast Aluminum/Steel Hinged Joints
Reconfiguration Time	4-8 Hours (Requires grinding/welding)	15-45 Minutes (Hex key assembly)
Static Load Capacity	500kg - 1000kg	150kg - 300kg (per shelf/tier)

The Mechanics of Modular Tubing and Joint Systems

The backbone of lean equipment supplied by firms like Brennan Equipment & Manufacturing Inc is the 28mm OD coated steel pipe. The pipe is manufactured from cold-rolled SPCC steel, providing high tensile strength, and is coated with a 0.8mm to 1.2mm layer of polyethylene (PE) or ABS plastic.

Pipe Coating and ESD Compliance

For electronics assembly or sensitive component manufacturing, standard PE coatings are insufficient due to static buildup. Lean workstations in these environments utilize ESD (Electrostatic Discharge) safe tubing. The surface resistance of ESD-safe PE coatings is strictly engineered to fall between 10⁶ and 10⁹ ohms, allowing static charges to dissipate safely to ground without short-circuiting sensitive PCBs. Grounding is achieved via copper braided straps connecting the pipe network to the facility's earth ground bus.

Joint Configurations and Torque Specifications

Modular joints (often designated as HJ or MJ series) connect the pipes at various angles. The most common configurations include:

• HJ-1 (90-degree L-joint): Used for primary vertical-to-horizontal frame corners.
• HJ-2 (180-degree straight joint): Used for extending pipe lengths beyond the standard 4-meter extrusion limit.
• HJ-3 (45-degree diagonal joint): Critical for cross-bracing to prevent lateral racking under dynamic loads.
• HJ-4 (T-joint): Used for mid-span shelf supports and Kanban rack intersections.

⚠️ Engineering Warning: Joint Torque Limits

When assembling M6x25mm hex bolts on standard aluminum or stamped steel joints, the optimal torque setting is 15 Nm to 18 Nm. Over-torquing beyond 22 Nm causes polymer creep in the PE pipe coating, leading to joint slippage over time as the plastic compresses and the bolt loses tension. Always use a calibrated torque wrench during final assembly.

Ergonomic Actuation and Operator Integration

According to OSHA's ergonomics guidelines, reducing awkward postures and heavy lifting is paramount in preventing musculoskeletal disorders (MSDs). Lean workstations integrate motorized or pneumatic actuation to maintain the workpiece within the operator's "Golden Zone" (between knuckle and shoulder height).

Linear Actuator Specifications for Sit-Stand Cells

Height-adjustable lean tables utilize dual synchronous linear actuators. The technical baseline for these actuators in an industrial environment includes:

• Input Voltage: 24V DC (stepped down from 110V/220V AC via integrated control box).
• Max Dynamic Load: 6,000N (approx. 600kg) combined across dual columns.
• Stroke Length: 400mm to 650mm, accommodating the 5th percentile female seated height to the 95th percentile male standing height.
• Speed: 8mm/s to 12mm/s unloaded.
• IP Rating: IP43 minimum to protect against coolant splashes and airborne particulate.

Designing a U-Shaped Lean Assembly Cell

The U-shaped cell is the gold standard for single-piece flow, allowing one operator to manage both the start and end of a process, or multiple operators to balance workloads dynamically. The NIST Manufacturing Extension Partnership (MEP) emphasizes that cell geometry directly dictates cycle time efficiency. Here is the step-by-step dimensional framework for designing a standard U-cell using modular equipment:

1. Establish the Aisle Width: Maintain a minimum internal aisle width of 900mm (35.4 inches) for pedestrian-only cells, or 1200mm (47.2 inches) if manual tuggers or AGVs (Automated Guided Vehicles) will enter the cell to replenish Kanban squares.
2. Define the Reach Depth: The work surface depth should not exceed 750mm (29.5 inches). This ensures that all components in the front supply bins remain within the 400mm primary reach zone, eliminating the waste of over-reaching.
3. Position the Point-of-Use (POU) Racks: Install gravity-fed flow racks directly behind or to the immediate side of the operator. The discharge end of the flow rack should be pitched and positioned so the leading bin sits exactly at the operator's elbow height (approx. 1050mm from the floor).
4. Integrate the Chute/Return System: Empty bins must be returned without the operator turning around. Install a dedicated empty-bin return rack on a lower tier (approx. 400mm from the floor) angled back toward the material handler's aisle.

Gravity Flow and Kanban Rack Dynamics

Material presentation is where lean workstations prove their ROI. Gravity-fed roller racks ensure FIFO (First-In, First-Out) inventory management without requiring electrical power or sensors at the rack level.

Calculating Pitch Angles for Skatewheel Conveyors

The pitch (decline angle) of a gravity flow rack must be precisely calculated based on the weight of the bin and the friction coefficient of the roller.

• Lightweight Bins (Under 5kg): Require a steeper pitch of 3.5 to 4.5 degrees to overcome static friction and initiate movement.
• Standard Bins (5kg - 15kg): Operate optimally at a 2.5 to 3.0 degree pitch.
• Heavy Bins (Over 15kg): Require a shallow pitch of 1.5 to 2.0 degrees to prevent the bin from accelerating too rapidly and damaging the front stopper or the components inside.

💡 Pro Tip: Braking Mechanisms

For heavy bins on longer flow racks (exceeding 1.5 meters in depth), rely on tilt-activated brake rollers installed every 400mm. These rollers use a mechanical cam that engages when the bin's velocity exceeds a safe threshold, preventing product damage at the pick face.

IoT and Pick-to-Light Integration

Modern lean workstations engineered by advanced fabricators are no longer purely mechanical; they serve as the physical anchor for digital work instructions. Integrating Pick-to-Light (PTL) systems requires specific structural considerations.

PTL sensor bars are typically mounted on the upper crossbeams of the workstation, angled down at 45 degrees toward the Kanban bins. The modular pipe structure must accommodate C-channel aluminum extrusions (typically 20x20mm or 30x30mm) clamped directly to the 28mm pipe using specialized T-slot adapters. This allows for the clean routing of 24V sensor cables and RS-485 communication wires, keeping them hidden from the operator's line of sight and protected from snagging.

Summary of Implementation Metrics

Lean Workstation ROI & Performance Baselines

• Changeover Time Reduction: 60% to 80% faster line reconfiguration compared to welded benches.
• Floor Space Optimization: U-cell modular designs typically recover 15% to 25% of wasted aisle space.
• Ergonomic Injury Rate: Sit-stand actuation and Golden Zone bin placement reduce upper-limb MSD incidents by up to 40%.
• Capital Expenditure: Modular lean pipe systems cost approximately 20% more upfront than basic welded tables, but yield a 3x ROI over 5 years due to reusability and zero-weld reconfiguration.

For further reading on continuous improvement frameworks, refer to the Lean Enterprise Institute for standardized value stream mapping techniques that dictate workstation placement.
