Troubleshooting a CNC Small Machine for Composite Cutting
Fix delamination, fraying, and tool wear on your CNC small machine when cutting composites. Expert troubleshooting steps and spindle speed formulas.
The Unique Challenge of Composites on Desktop-Scale Routers
Cutting anisotropic materials like Carbon Fiber Reinforced Polymer (CFRP) or Glass Fiber Reinforced Polymer (GFRP) requires a delicate balance of high speed and rigid tooling. When operating a CNC small machine, operators face a distinct mechanical disadvantage: lightweight gantries and low-torque spindles (typically 1.5kW to 2.2kW) struggle to maintain the aggressive chip loads required to shear composite fibers cleanly. Instead of cutting, the tool often rubs against the abrasive matrix, generating heat that degrades the resin and shatters the carbon fibers, resulting in catastrophic edge delamination.
Troubleshooting these defects requires moving beyond standard wood or aluminum machining paradigms. According to Sandvik Coromant's composite machining guidelines, the abrasive nature of CFRP can wear out standard uncoated carbide tools in less than 15 linear feet of cutting. On a small-format CNC, this rapid wear exacerbates deflection issues, creating a cascading failure of part accuracy and edge quality.
⚠️ SAFETY WARNING: Conductive Dust HazardsCarbon fiber dust is highly conductive and microscopically fine. If drawn into the stepper motor drivers, VFD (Variable Frequency Drive), or spindle inverter of your small CNC, it will cause short circuits and catastrophic electronic failure. Always use a sealed enclosure with a high-static-pressure HEPA vacuum system, and regularly purge electronics bays with dry, oil-free compressed air.
Symptom-to-Cause Diagnostic Matrix
Before adjusting feeds and speeds, identify the exact failure mode. Use this diagnostic matrix to pinpoint whether the issue stems from tooling, machine rigidity, or parameter misalignment.
| Visual Symptom | Root Cause on Small CNCs | Corrective Action |
|---|---|---|
| Top-edge splintering / fuzzing | Up-cut tool geometry pulling fibers upward; dull cutting edge. | Switch to a down-cut or compression spiral; inspect PCD coating. |
| Bottom-edge delamination | Down-cut tool pushing material into sacrificial board; board unevenness. | Use a compression bit; surface the MDF sacrificial board flat. |
| Burnt resin smell / melted edges | Rubbing due to low chip load; spindle RPM too high for feed rate. | Increase feed rate; decrease RPM; apply compressed air coolant. |
| Tapered walls / dimensional drift | Gantry deflection under lateral cutting forces; belt stretch. | Reduce depth of cut (DOC) per pass; tension X/Y belts; brace gantry. |
| Random missed steps / E-stops | Conductive CFRP dust shorting stepper drivers or limit switches. | Deep clean electronics; seal control box; upgrade to IP65 switches. |
Troubleshooting Delamination: The Tooling Fix

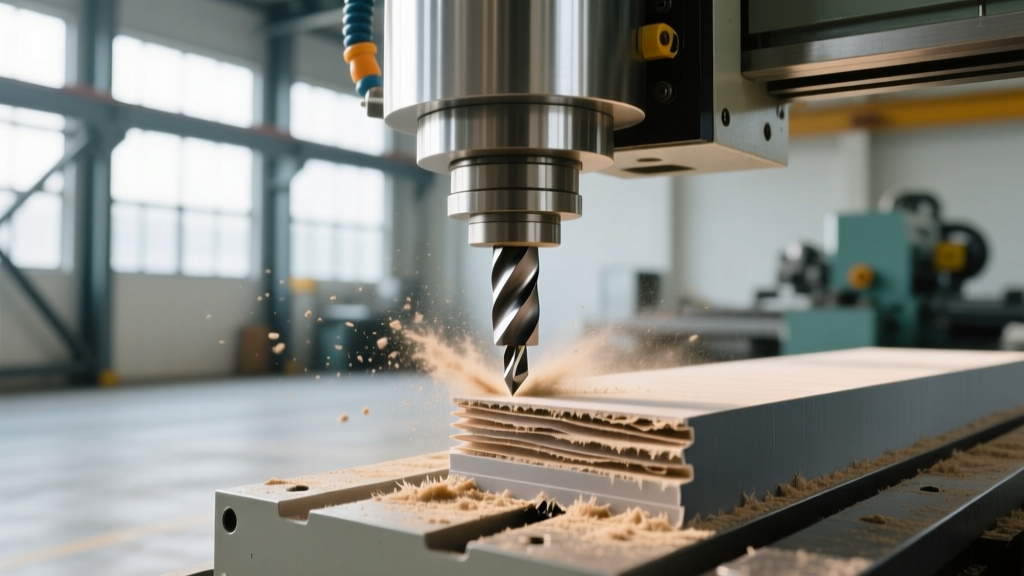

Delamination occurs when the cutting force exceeds the interlaminar shear strength of the composite resin. On heavy industrial routers, operators use high-torque spindles to push large-diameter compression bits through 1-inch thick CFRP in a single pass. A CNC small machine cannot replicate this force without severe gantry deflection.
The Small-Format Compression Strategy
To achieve clean edges on both the top and bottom of the workpiece without overloading a 1.5kW spindle, you must utilize 1/8-inch (3.175mm) or 1/4-inch shank compression routers with a Polycrystalline Diamond (PCD) tip. The compression geometry features an up-cut flute at the tip (pulling the bottom layers inward) and a down-cut flute at the top (pushing the top layers downward), effectively pinching the composite plies together at the shear zone.
- Depth of Cut (DOC) Limitation: Never exceed 1.5x the tool diameter per pass in CFRP on a lightweight machine. For a 1/4-inch bit, limit DOC to 0.375 inches (9.5mm) per pass.
- Tool Life Economics: A solid carbide bit ($15) will degrade after roughly 30 minutes of cutting CFRP, leading to frayed edges. A CVD diamond-coated or PCD-tipped bit ($90–$140) will maintain a razor edge for 40+ hours. The upfront cost is mandatory for composite work.
Recalculating Feeds and Speeds for Low-Torque Spindles
The most common mistake operators make when transitioning to composites is applying aluminum machining math. As noted in CompositesWorld's machining analysis, the goal is to fracture the fiber, not melt the matrix. This requires a high Surface Feet per Minute (SFM) to ensure the cutting edge strikes the fiber before the resin can absorb the heat.
For CFRP, the target SFM is typically 300 to 600. However, small CNC spindles (like the common HSD ES929 or generic water-cooled VFD spindles) produce very little torque below 10,000 RPM. If you use a 1/2-inch bit at 4,000 RPM to hit 500 SFM, the spindle will stall or the belts will slip.
💡 The Diameter-to-RPM Hack for Small MachinesTo maintain high SFM while keeping the spindle in its high-torque power band (18,000+ RPM), you must drop your tool diameter. Using a 1/8-inch (0.125") end mill at 18,000 RPM yields an SFM of roughly 589. This allows the small spindle to operate efficiently while achieving the necessary surface speed to cleanly shear carbon fibers.
Chip Load Verification
Rubbing is the enemy of composite machining. You must maintain a minimum chip load of 0.002" to 0.004" per tooth. Use this formula to verify your feed rate:
Feed Rate (IPM) = RPM × Number of Flutes × Chip Load
Example: 18,000 RPM × 2 flutes × 0.003" chip load = 108 IPM (Inches Per Minute). If your small CNC's stepper motors cannot maintain 108 IPM accurately without losing steps, you must reduce the RPM proportionally or upgrade to closed-loop steppers.
Mechanical Rigidity and Spindle Runout
Composite tooling, particularly PCD and diamond-coated bits, is exceptionally brittle. If your spindle has excessive runout, the tool will micro-chip, leading to immediate edge fraying. Small CNC machines often ship with standard ER11 or ER16 collets that may have a runout of 0.001" or more out of the box.
Step-by-Step Runout Troubleshooting
- Clean the Taper: Remove the collet nut and collet. Use a lint-free cloth and isopropyl alcohol to clean the spindle taper and the collet exterior. Even a microscopic carbon dust particle will induce 0.0005" of runout.
- Measure with a Dial Indicator: Mount a 0.0001" resolution dial indicator on the gantry. Place the probe against the shank of a brand-new, certified 1/4" dowel pin inserted into the collet.
- Rotate and Record: Manually rotate the spindle shaft 360 degrees. If the variance exceeds 0.0004" (0.01mm), your collet is degraded or the spindle bearings are worn.
- Upgrade to Precision Collets: Replace stock collets with UP (Ultra Precision) ER collets rated for < 0.0002" runout. This single $40 upgrade often eliminates mysterious edge-fuzzing issues on small machines.
Thermal Management Without Liquid Coolants
Liquid coolants are generally avoided in CFRP machining because the resin matrix can absorb moisture, leading to swelling and structural degradation. Furthermore, liquid coolant mixed with carbon dust creates a highly conductive, corrosive sludge that will destroy a small machine's linear rails and lead screws.
Instead, implement a targeted compressed air blast. Mount a 1/4" articulated coolant line (Loc-Line) directly to the spindle housing, aiming the nozzle precisely at the cutting edge. Regulate the air pressure to 40-60 PSI. This serves two critical functions:
- Chip Evacuation: Prevents recutting of abrasive carbon fibers, which is the primary cause of secondary tool wear.
- Convective Cooling: The rapid expansion of compressed air drops the localized temperature, preventing the epoxy or bismaleimide (BMI) resin matrix from reaching its glass transition temperature (Tg) and melting.
Preventative Maintenance for Abrasive Environments
A CNC small machine used for composites requires a rigorous maintenance schedule. The abrasive nature of GFRP and CFRP dust acts like lapping compound on exposed steel components.
- Linear Rails: If your machine uses exposed linear profile rails (e.g., Hiwin HGR15), wipe them down and re-lubricate with a light lithium grease every 8 hours of cutting time. Install accordion-style way covers if possible.
- Lead Screws vs. Belts: Ball screws are highly susceptible to carbon dust ingestion. If your small CNC uses ball screws, ensure the wiper seals are intact. Belt-driven machines are actually preferable for heavy composite work, as belts are immune to dust-induced jamming, provided the pulleys are kept clean.
- Sacrificial Board Surfacing: Composites require absolute flatness to prevent bottom-edge blowout. Fly-cut your MDF or phenolic sacrificial board every 10 hours of operation to ensure uniform Z-axis depth engagement across the entire cutting envelope.
