CNC Machine Cutting Maintenance: Plasma & Laser Service Schedules

The True Cost of Deferred CNC Machine Cutting Maintenance

CNC machine cutting systems operate under extreme thermal, optical, and mechanical stress. A deferred maintenance schedule on a 6kW fiber laser or a 300-amp plasma system does not merely degrade cut quality; it triggers catastrophic component failures. According to industry data tracked by the Society of Manufacturing Engineers (SME), unplanned downtime in thermal cutting operations costs fabricators an average of $150 to $300 per hour in lost machine time, labor, and delayed shipments.

Critical Warning: Neglecting the daily inspection of a fiber laser's lower protective window can result in beam reflection into the cutting head. This causes instantaneous melting of the collimating lens assembly, resulting in an $8,500+ repair bill and up to 14 hours of machine downtime.

Implementing a rigid, process-specific preventative maintenance (PM) matrix is the only way to protect capital equipment investments and maintain tight kerf tolerances. Below is a comprehensive breakdown of service intervals for the three dominant thermal and kinetic cutting processes.

Financial Impact of Component Neglect

Component	Failure Mode from Deferred PM	Replacement Cost	Est. Downtime
Plasma Swirl Ring	Clogged gas ports causing wide kerf and severe dross	$45 - $85	15 mins
Laser Protective Window	Thermal runaway melting the cutting head optics	$8,500+	12 - 18 hrs
Waterjet Jewel Orifice	Cavitation pitting causing stream deflection and taper	$250 - $400	30 mins
Laser Chiller Resin Bed	Drop in water resistivity causing resonator corrosion	$12,000+	3 - 5 days

Process-Specific Maintenance Protocols

Different CNC machine cutting technologies require vastly different maintenance approaches. Treating a waterjet pump with the same PM schedule as a plasma torch will result in rapid equipment degradation.

CNC Plasma Systems (e.g., Hypertherm XPR300 / HPRXD)

Plasma cutting relies on a constricted electrical arc and high-velocity gas. The Hypertherm Plasma Cutting Basics documentation emphasizes that gas purity and coolant chemistry are the primary drivers of consumable life.

• Coolant Chemistry: Check the specific gravity and pH of the propylene glycol coolant mixture weekly. The pH must remain between 8.0 and 9.0. If the pH drops below 7.5, the coolant becomes acidic and will corrode the torch's internal copper wiring and the power supply's IGBT heat sinks.
• Swirl Ring Inspection: The swirl ring dictates the gas vortex that constricts the plasma arc. Inspect the micro-ports for carbon buildup every 50 arc-starts. Clean with compressed air; never use a metal pick, which will alter the gas flow dynamics and ruin True Hole capabilities.
• Nozzle Orifice Measurement: Use a pin gauge to measure the nozzle orifice. A 1.1mm orifice that has degraded to 1.25mm will cause a 15% drop in cut speed and severe beveling on thick plate. Replace immediately upon measuring a 0.1mm deviation.

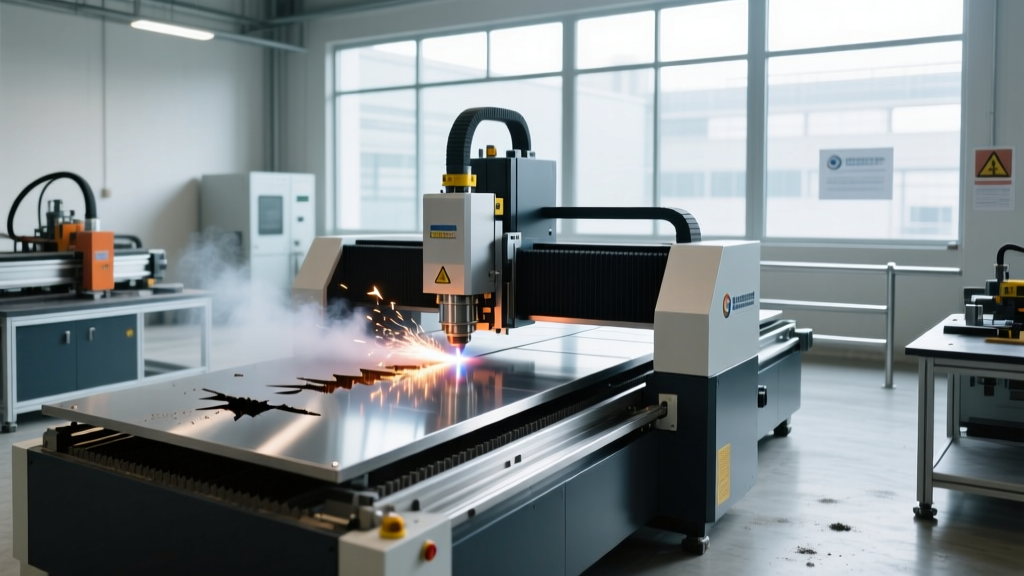

Fiber Laser Cutting (e.g., Trumpf TruLaser / ByStar with IPG Resonators)

Fiber lasers operate with extreme optical precision. A single micron of dust or oil on a lens can absorb the 1070nm wavelength, leading to thermal fracturing.

Expert Insight: The most common cause of catastrophic laser head failure is not the cutting process itself, but contaminated assist gas. Always install coalescing filters on your nitrogen and oxygen lines to trap aerosolized compressor oil before it reaches the cutting head.

Optics Care Checklist:
1. Inspect the lower protective window daily using a bright LED flashlight at an oblique angle.
2. Replace the window if more than three distinct spatter burns are visible.
3. Verify chiller deionized (DI) water resistivity monthly. It must remain above 1 MΩ·cm. Replace the DI resin bed cartridge immediately if resistivity drops below 0.8 MΩ·cm.

Abrasive Waterjet Systems (e.g., Flow HyperPressure / Omax)

Waterjets utilize extreme hydraulic pressure (up to 87,000 psi) combined with abrasive garnet. The maintenance focus here is entirely on hydraulic seals, high-pressure tubing fatigue, and abrasive delivery consistency.

• Intensifier Pump Service: For 50,000 psi systems, change the crankcase oil every 500 hours. For 87,000 psi HyperPressure systems, the high-pressure cylinder seals and check valves must be rebuilt every 500 hours, as the extreme pressure accelerates elastomer extrusion.
• Mixing Tube Rotation: The abrasive stream naturally wears the inside of the tungsten carbide mixing tube unevenly. Rotate the tube 90 degrees every 8 hours of cutting time to ensure even wear and maintain a straight kerf. Replace the tube when the exit diameter expands beyond 0.032 inches.
• Jewel Orifice Inspection: Remove the ruby or sapphire jewel every 40 hours and inspect it under a 30x magnification loupe. Look for cavitation pitting on the inlet cone. A pitted jewel will cause the water stream to fan out, prematurely destroying the mixing tube.

The 52-Week CNC Machine Cutting Service Matrix

Standardize your shop floor operations by implementing this 52-week preventative maintenance matrix. Print this and assign specific technicians to each cadence.

Cadence	Plasma Tasks	Fiber Laser Tasks	Waterjet Tasks
Daily	Clean torch shield cap; check gas pressure regulators.	Inspect lower protective window; clean slat beds.	Check abrasive hopper moisture; rotate mixing tube.
Weekly	Inspect torch leads for micro-fractures; clean slats.	Clean cutting head nozzle exterior; check chiller temp.	Lubricate Z-axis rails; inspect catch tank water level.
Monthly	Test coolant pH and specific gravity; calibrate THC.	Check assist gas filter differential pressure gauges.	Inspect jewel orifice under 30x mag; check hopper feed rate.
Bi-Annual	Replace coolant fluid entirely; inspect CNC drive belts.	Replace chiller DI resin bed; calibrate capacitive sensor.	Rebuild intensifier check valves; replace high-pressure bleed tubes.
Annual	Full power supply diagnostic; replace gantry pinions.	Resonator optical alignment check by OEM technician.	Replace high-pressure pump crankcase oil and seals; flush tank.

Integrating Predictive IoT Sensors in 2026

Modern CNC machine cutting maintenance has evolved beyond calendar-based schedules. Leading fabricators are now integrating Industrial Internet of Things (IIoT) edge sensors to transition from preventative to predictive maintenance.

By mounting tri-axial vibration sensors on waterjet intensifier pumps, operators can monitor the harmonic signature of the check valves. A spike in high-frequency vibration indicates a failing poppet seal long before a catastrophic pressure drop occurs. Similarly, mounting thermal cameras on fiber laser cutting heads allows the CNC controller to monitor the temperature of the collimating lens housing in real-time. If the lens temperature rises by more than 4°C above ambient baseline, the machine automatically pauses the cut and alerts the operator to a contaminated protective window, saving tens of thousands of dollars in optics replacements.

Frequently Asked Questions

How often should I replace the coolant in my CNC plasma cutter?

Standard propylene glycol coolant mixtures should be completely flushed and replaced every 12 to 18 months, or roughly every 2,000 arc-on hours. Over time, the corrosion inhibitors in the coolant deplete, and the fluid becomes conductive and acidic, which can short out the torch's internal wiring and damage the power supply's inverter modules.

Can I use shop air instead of nitrogen for fiber laser assist gas?

While compressed air is commonly used for cutting thin-gauge mild steel to reduce gas costs, it requires rigorous filtration. You must use a multi-stage filtration system including a coalescing filter, a desiccant dryer, and a final carbon filter to achieve a dew point of -40°F and remove all aerosolized oils. If oil reaches the laser cutting head, it will instantly ruin the protective lens and potentially back-reflect into the resonator. Always consult OSHA Laser Safety Guidelines and your OEM manual regarding assist gas specifications.

Why is my waterjet cutting a severe taper even with a new mixing tube?

If the mixing tube and jewel are new, severe taper is almost always caused by a misalignment between the jewel orifice and the mixing tube inlet, or a damaged jewel seating O-ring. When the high-pressure water stream does not enter the mixing tube perfectly dead-center, it bounces off the interior carbide wall, creating a turbulent, deflected stream that cuts a heavy taper. Re-seat the jewel and perform a paper-tape alignment test to verify the stream is perfectly centered before introducing abrasive.
