Why Sports Equipment Manufacturers Adopt Modular Cells

The High-Mix, High-Velocity Dilemma in Athletic Gear

For sports equipment manufacturers, the era of running dedicated, single-purpose production lines for months on end is over. Consumer demand for hyper-customized gear—from 3D-printed lattice midsoles in running shoes to variable-stiffness carbon fiber hockey sticks—has caused SKU proliferation to explode. A single baseball bat manufacturer might now manage over 50 alloy variations, 12 barrel profiles, and 40 distinct grip configurations. When seasonal trends dictate rapid design iterations, traditional fixed-automation lines become a massive liability, suffering from crippling changeover downtimes and low Overall Equipment Effectiveness (OEE) during product transitions.

To survive, sports equipment manufacturers are aggressively pivoting toward modular manufacturing equipment. By decoupling production into reconfigurable, plug-and-play cells, factories can scale capacity up or down and switch between entirely different product families in minutes rather than shifts. According to frameworks established by the NIST Advanced Manufacturing Programs, Reconfigurable Manufacturing Systems (RMS) are critical for industries facing high demand volatility, providing the exact operational elasticity required for modern athletic gear production.

Data Highlight: The SKU Explosion
Between 2020 and 2025, the average number of SKUs managed by mid-sized sports equipment manufacturers increased by 68%, driven by direct-to-consumer (DTC) customization portals and rapid seasonal colorway releases. Managing this via dedicated lines results in an average OEE drop of 22% during changeover weeks.

Core Modular Technologies Reshaping the Factory Floor

Transitioning to a modular architecture requires specific hardware and control paradigms. Below are the primary technologies currently deployed on the factory floors of leading athletic gear producers.

1. Magnetic Platen Injection Molding for Footwear and Hard Goods

Injection molding remains the backbone for producing cleats, helmet shells, and protective padding. Traditional mold changes require overhead cranes, manual bolting, and extensive water-line reconnections, often taking 4 to 6 hours. Modern modular cells utilize magnetic platen systems (such as those engineered by Staubli or Braun) integrated with standardized, quick-connect utility plates.

• CapEx Requirement: $45,000 to $85,000 per press for magnetic platen retrofitting and utility quick-connects.
• Changeover Time: Reduced from 240 minutes to under 18 minutes.
• Application: Switching a 600-ton press from molding TPU soccer cleat outsoles to polycarbonate visor components within a single shift.

2. Independent Cart Conveyors for Asynchronous Routing

Modular conveyor systems based on linear motor technology, such as the Beckhoff XTS or Festo MCS, replace traditional continuous-belt conveyors. These systems utilize independent, software-controlled carts that can be routed asynchronously. For a custom ski or snowboard manufacturer, this means a raw core can be routed to a CNC edge-routing cell, while a customized top-sheet is simultaneously routed to a UV-curing station, merging perfectly at the final press station without mechanical bottlenecks.

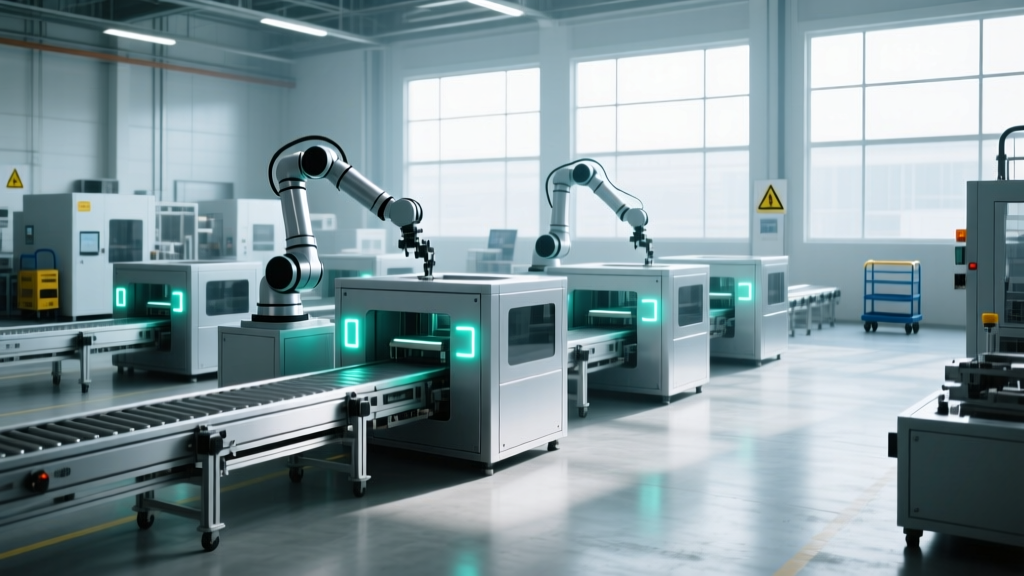

3. Quick-Change Cobot End-Effectors in Assembly Pods

Final assembly of sports gear—such as lacing footwear, applying grip tape to tennis rackets, or installing helmet retention systems—requires high dexterity. Modular robotic pods utilize collaborative robots (cobots) equipped with automatic tool changers (e.g., Schunk SWS series). A single KUKA LBR iisy cobot can drop a vacuum gripper used for picking molded shells and instantly lock into a tensioning tool for strap assembly, governed by RFID-tagged recipe loading in the PLC.

CapEx and OpEx Comparison: Dedicated Line vs. Modular Pod Network

When evaluating factory floor investments, the financial modeling shifts from a pure volume-based ROI to a flexibility-based ROI. The table below contrasts a traditional dedicated assembly line with a modular pod network for a mid-volume protective gear manufacturer.

Metric	Dedicated Hard-Automation Line	Modular Pod Network (6 Cells)
Initial CapEx	$2.8 Million	$1.4 Million (Base + Modules)
Product Changeover Time	8 - 12 Hours	45 - 90 Minutes
Footprint Flexibility	Fixed (Requires facility rework)	High (Pods can be relocated via AGV)
Scalability Cost (Add 20% Capacity)	$900,000 (New Line)	$180,000 (Add 1-2 duplicate pods)
Maintenance Downtime Impact	Halts entire line (100% loss)	Isolates single pod (16% loss)

The Economics of Changeover: Applying SMED to Modular Cells

The financial justification for modular manufacturing equipment hinges on Single-Minute Exchange of Die (SMED) principles applied to modern automation. For sports equipment manufacturers producing seasonal goods, the cost of downtime during the transition from winter gear (e.g., snowboard bindings) to summer gear (e.g., water ski handles) is immense.

Consider a facility where line downtime costs $3,500 per hour in burdened labor and lost throughput. A dedicated line requiring an 8-hour mechanical teardown and PLC reprogramming costs $28,000 per changeover. If the factory executes 40 changeovers annually, that is $1.12 million in pure waste. By deploying modular cells with pre-wired, pre-programmed drop-in modules, the changeover drops to 45 minutes ($2,625 per event). The annual savings of over $1 million typically yields a payback period on the modular control architecture of less than 14 months.

Industry Standard Note: To achieve true plug-and-play modularity, sports equipment manufacturers must standardize their machine-to-machine communication. Adopting the OMAC PackML standard for state models and utilizing OPC UA over Time-Sensitive Networking (TSN) ensures that a new modular CNC cell can be integrated into the factory's MES (Manufacturing Execution System) without custom code writing. Research from the Fraunhofer Institute for Manufacturing Engineering and Automation consistently highlights that standardized communication protocols are the primary bottleneck in modular factory deployments.

Step-by-Step Framework for Modular Cell Integration

Implementing modular equipment is not as simple as swapping out hardware; it requires a fundamental shift in factory layout and utility distribution. Follow this phased approach to avoid common integration traps.

1. Audit Utility Decoupling: Map all pneumatic, hydraulic, and electrical drops. Modular cells require overhead utility grids (busbar systems) rather than hard-piped floor drops. Install modular busbar tracks rated for at least 20% over-capacity to handle future cell additions.
2. Standardize the Mechanical Interface: Mandate a universal grid pattern (e.g., 50mm x 50mm T-slot extrusions or standardized cast-in-place floor anchors) across all production zones. This allows a robotic welding pod to be physically swapped with an ultrasonic bonding pod using standard pallet jacks.
3. Implement IO-Link Masters at the Edge: Rather than running hundreds of discrete wires back to a central cabinet, deploy decentralized IO-Link masters (e.g., Turck or Balluff) directly on the modular cell base. This ensures that when a cell is unplugged and moved, its sensor network remains intact and instantly recognizable to the main PLC upon reconnection.
4. Deploy RFID Recipe Management: Tag every physical module and tooling plate with industrial RFID. When a module is locked into a station, the PLC automatically reads the tag and loads the corresponding safety zones, motion profiles, and quality inspection parameters, eliminating manual HMI setup errors.

Real-World Edge Cases and Failure Modes

While modular manufacturing equipment offers immense agility, sports equipment manufacturers must navigate specific technical edge cases to prevent systemic failures.

Power Bus Saturation in High-Draw Cells

A common failure mode occurs when a factory attempts to plug a high-draw modular cell (such as a rapid-heating thermoforming station for custom mouthguards or helmet liners) into a standard modular power bus. Thermoforming requires massive inrush currents that can trip the main bus breakers, taking down adjacent low-power assembly pods. Solution: Segregate high-thermal and high-inrush modular zones onto dedicated heavy-duty busbars with active power monitoring relays.

Loss of Precision in Repeated Docking

In sports gear manufacturing, tolerances for carbon fiber layup molds or precision-machined bicycle derailleur components are measured in microns. If modular cells rely on standard forklift placement, positional drift will ruin the tooling alignment. Solution: Utilize automated guided vehicles (AGVs) equipped with optical laser-guided docking systems, or install pneumatic V-block locators that pull the modular cell into exact sub-millimeter alignment the moment it enters the drop zone.

Strategic Sourcing for Modular Components

When procuring modular systems, avoid vendor lock-in by insisting on open-architecture hardware. The Society of Manufacturing Engineers (SME) frequently advises manufacturers to prioritize components that support open industrial Ethernet protocols (like PROFINET or EtherCAT) over proprietary, closed-loop ecosystems. By standardizing on open protocols, a sports equipment manufacturer can integrate a German-engineered CNC module alongside a Japanese robotic arm and a domestic vision-inspection camera, all communicating seamlessly within a unified, flexible production environment.
